JDM Vehicle Catalog

Vehicle Specs

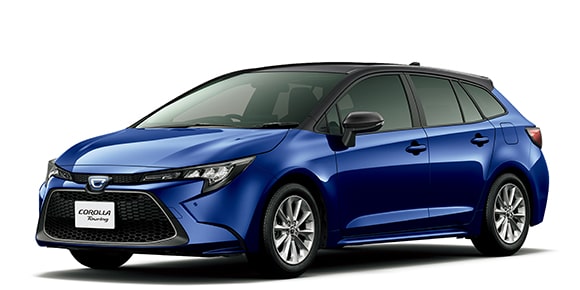

TOYOTA COROLLA TOURING HYBRID S

TOYOTA COROLLA TOURING

ZWE214W · HYBRID S

Description

Modification: HYBRID S
Chassis ID: ZWE214W
Dates releasing: 2020.10~
Base price, ¥: 6AA-ZWE214W
Body size: 4495x1745x1460
Interior (LxWxH): 1795x1510x1160
Wheelbase: 2640
Track f/r: 1510mm/1520mm
Full weight, kg: 1430
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

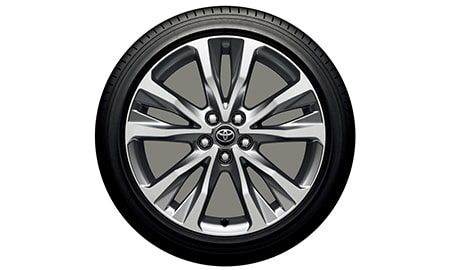

Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2ZR-FXE
Type: inline 4 cylinder +
Bore x stroke, mm: 80.5x88.3
Engine size, cc: 1797
Compression ratio: ----
Fuel injection: EFI
Max power, hp/rpm: 98ps(72kW)/5200rpm
Max torque, Nm/rpm: 14.5kg m(142N m)/3600rpm
Supercharger: ×
Fuel tank, liters: 43 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16
Rear wheel: 205/55R16
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Dark blue mica metallic / Other BlueDark cyanPearl / Other PearlGold
