JDM Vehicle Catalog

Vehicle Specs

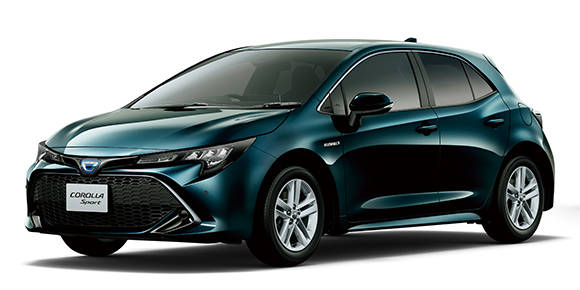

TOYOTA COROLLASPORT G

TOYOTA COROLLASPORT

NRE214H · G

Description

Modification: G
Chassis ID: NRE214H
Dates releasing: 2020.6~
Base price, ¥: 3BA-NRE214H
Body size: 4375x1790x1490
Interior (LxWxH): 1795x1510x1155
Wheelbase: 2640
Track f/r: 1530mm/1535mm
Full weight, kg: 1370
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 8NR-FTS
Type: inline 4 cylinder turbo
Bore x stroke, mm: 71.5x74.5
Engine size, cc: 1196
Compression ratio: ----
Fuel injection: 筒内直接燃料噴射装置(D-4T)
Max power, hp/rpm: 116ps(85kW)/5200~5600rpm
Max torque, Nm/rpm: 18.9kg m(185N m)/1500~4000rpm
Supercharger: Turbo
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16
Rear wheel: 205/55R16
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.480~0.396	—	—	—	—	—	—	—	—	2.604~1.680

Available colors

black / Other blackwhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshes / Gray metallic / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRed / Other RedBlueDark cyan / Other Dark cyanPearl / Other PearlGold
