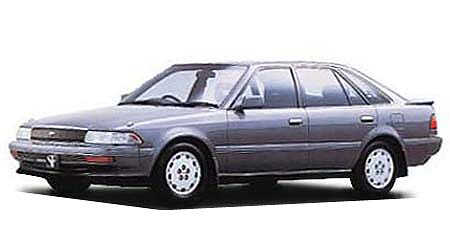

TOYOTA CORONA SF X

TOYOTA CORONA SF

ST170 · X

Description

Modification: X
Chassis ID: ST170
Dates releasing: 1989.11~
Base price, ¥: E-ST170
Body size: 4480x1690x1370
Interior (LxWxH): 1875x1420x1150
Wheelbase: 2525
Track f/r: 1470mm/1440mm
Full weight, kg: 1100
Body type: Sedan
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4S-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 82.5x86.0
Engine size, cc: 1838
Compression ratio: 9.3
Fuel injection: EFI
Max power, hp/rpm: 115ps(85kW)/5600rpm
Max torque, Nm/rpm: 16.0kg m(156.9N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Strut type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R13 85S
Rear wheel: 185/70R13 85S
Min turn diameter, m: 5.1

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.538	2.041	1.322	0.945	0.731	—	—	—	3.153

Available colors

black / Other blackwhite / Super White IIgreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshes / Bluish gray metallicYellowYellow-green / Grayish green metallicBlack (P)MagentaSilverRedBlueDark cyanPearlGold
