JDM Vehicle Catalog

Vehicle Specs

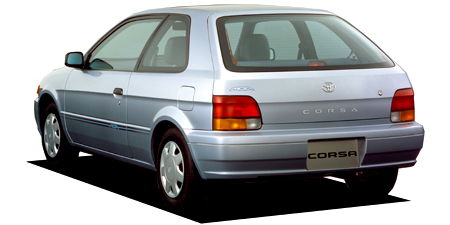

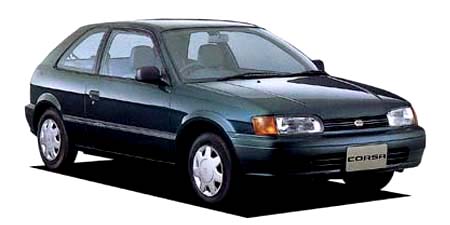

TOYOTA CORSA MOA

TOYOTA CORSA

NL50 · MOA

Description

Modification: MOA
Chassis ID: NL50
Dates releasing: 1994.9~
Base price, ¥: KD-NL50
Body size: 3915x1660x1370
Interior (LxWxH): 1750x1395x1160
Wheelbase: 2380
Track f/r: 1400mm/1430mm
Full weight, kg: 880
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ◯
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 1N-T
Type: inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 74.0x84.5
Engine size, cc: 1453
Compression ratio: 22.0
Fuel injection: ボッシュ type 分配型(噴射ポンプ)
Max power, hp/rpm: 67ps(49kW)/4200rpm
Max torque, Nm/rpm: 14.0kg m(137.3N m)/2600rpm
Supercharger: Turbo
Fuel tank, liters: 45 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: トレーリングツイストビーム type Coil spring (stabi
Front brake: disk
Rear brake: Drum
Front wheel: 155SR13
Rear wheel: 155SR13
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ◯

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.545	1.904	1.310	0.969	0.725	—	—	—	3.250

Available colors

black / Black Metallicwhite / Super White IIgreen / Dark green mica metallicMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshesYellowYellow-greenBlack (P)Magenta / Other MagentaSilver / Other SilverRed / Super Red IIBlueDark cyanPearlGold
