Vehicle Specs

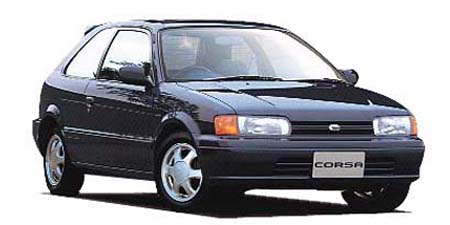

TOYOTA CORSA MOA SPECIAL L

TOYOTA CORSA

EL55 · MOA SPECIAL L

Description

Modification: MOA SPECIAL L
Chassis ID: EL55
Dates releasing: 1997.7~
Base price, ¥: E-EL55
Body size: 3915x1660x1385
Interior (LxWxH): 1750x1380x1160
Wheelbase: 2380
Track f/r: 1395mm/1380mm
Full weight, kg: 1000
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 5E-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 74.0x87.0
Engine size, cc: 1496
Compression ratio: 9.8
Fuel injection: EFI-D(電子制御 type 燃料噴射装置)
Max power, hp/rpm: 91ps(67kW)/5400rpm
Max torque, Nm/rpm: 13.2kg m(129.4N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: トレーリングリンク Axle Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/70R13 82S
Rear wheel: 175/70R13 82S
Min turn diameter, m: 4.8

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.005	2.208	1.425	0.981	—	—	—	—	3.272

Available colors

blackwhite / Super White IIgreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
