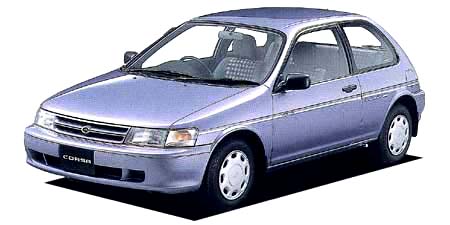

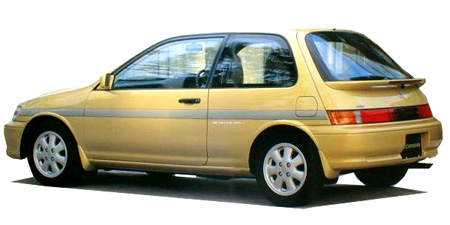

TOYOTA CORSA TX

TOYOTA CORSA

EL41 · TX

Description

Modification: TX
Chassis ID: EL41
Dates releasing: 1993.8~
Base price, ¥: E-EL41
Body size: 3930x1645x1365
Interior (LxWxH): 1760x1370x1145
Wheelbase: 2380
Track f/r: 1400mm/1430mm
Full weight, kg: 820
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4E-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 74.0x77.4
Engine size, cc: 1331
Compression ratio: 9.6
Fuel injection: EFI-D(電子制御 type 燃料噴射装置)
Max power, hp/rpm: 97ps(71kW)/6400rpm
Max torque, Nm/rpm: 11.5kg m(112.8N m)/5200rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: トレーリングツイストビーム type Coil spring (stabi
Front brake: disk
Rear brake: Drum
Front wheel: 145SR13
Rear wheel: 145SR13
Min turn diameter, m: 4.5

Gearbox

Number of stages: 4MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.545	1.904	1.310	0.969	—	—	—	—	3.250

Available colors

black / Dark bluish gray metallicwhite / Super White IIgreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Super Red IIBlueDark cyanPearlGold
