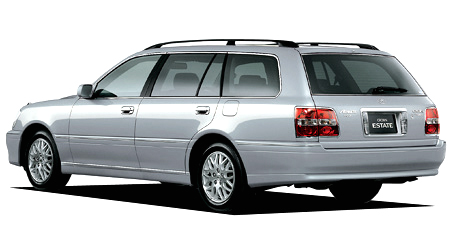

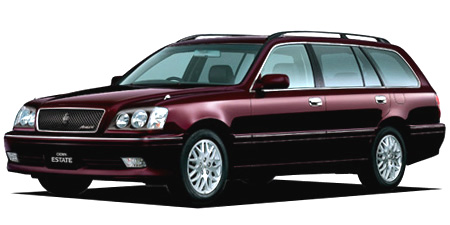

TOYOTA CROWN ESTATE ATHLETE FOUR

TOYOTA CROWN ESTATE

JZS173W · ATHLETE FOUR

Description

Modification: ATHLETE FOUR
Chassis ID: JZS173W
Dates releasing: 2004.4~
Base price, ¥: TA-JZS173W
Body size: 4835x1765x1525
Interior (LxWxH): 1985x1510x1200
Wheelbase: 2780
Track f/r: 1490mm/1470mm
Full weight, kg: 1670
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1JZ-GE
Type: water cooling inline 6 cylinder DOHC 24-valves
Bore x stroke, mm: 86.0x71.5
Engine size, cc: 2491
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 196ps(144kW)/6000rpm
Max torque, Nm/rpm: 26.0kg m(255N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16 89V
Rear wheel: 205/55R16 89V
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.705	—	—	—	—	2.393

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-greenBlack (P)Magenta / Other MagentaSilverRedBlue / Light blue metallicDark cyanPearl / White Pearl Crystal ShineGold
