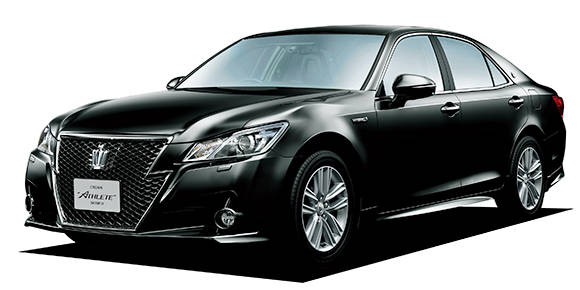

TOYOTA CROWN HYBRID ATHLETE S

TOYOTA CROWN HYBRID

AWS210 · ATHLETE S

Description

Modification: ATHLETE S
Chassis ID: AWS210
Dates releasing: 2013.1~
Base price, ¥: DAA-AWS210
Body size: 4895x1800x1450
Interior (LxWxH): 1975x1510x1190
Wheelbase: 2850
Track f/r: 1545mm/1545mm
Full weight, kg: 1660
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

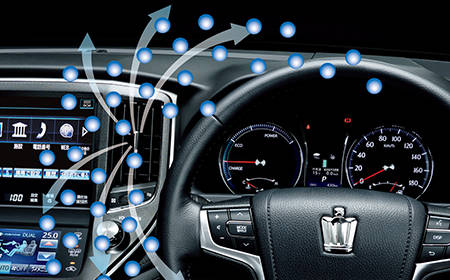

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

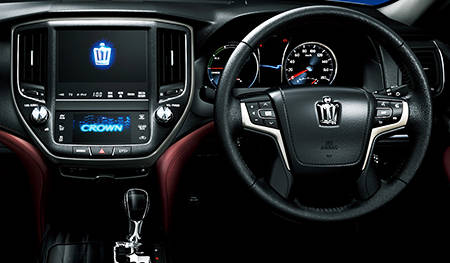

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×

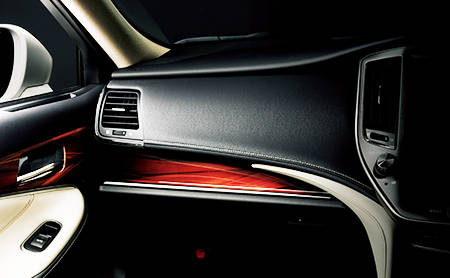

Wood panel: ✓
Sunroof: ◯

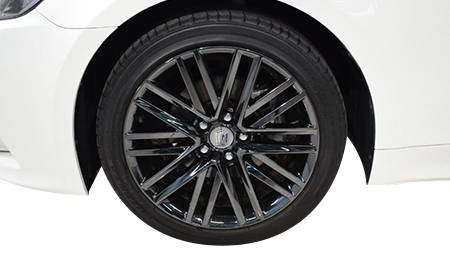

Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

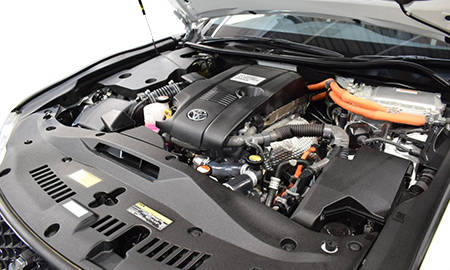

Engine

Model: 2AR-FSE
Type: inline 4 cylinder DOHC+
Bore x stroke, mm: 90.0x98.0
Engine size, cc: 2493
Compression ratio: 13.0
Fuel injection: 筒内直接+ポート燃料噴射装置
Max power, hp/rpm: 178ps(131kW)/6000rpm
Max torque, Nm/rpm: 22.5kg m(221N m)/4200~4800rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Coil spring
Rear suspension: Multi-link Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55R17 94V
Rear wheel: 215/55R17 94V
Min turn diameter, m: 5.2

Gearbox

Number of stages: CVT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯

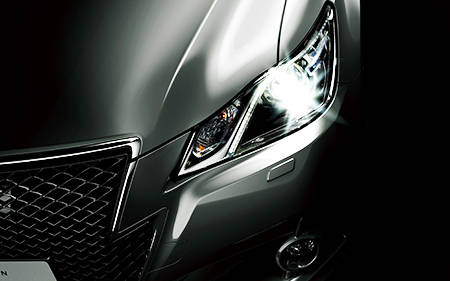

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

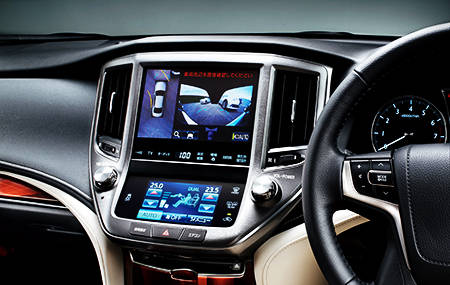

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / White Pearl Crystal ShineGold
