JDM Vehicle Catalog

Vehicle Specs

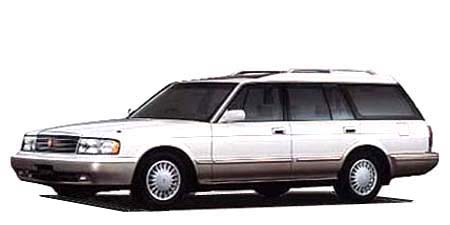

TOYOTA CROWN STATIONWAGON ROYAL EXTRA TOURING SELECTION

TOYOTA CROWN STATIONWAGON

JZS130G · ROYAL EXTRA TOURING SELECTION

Description

Modification: ROYAL EXTRA TOURING SELECTION
Chassis ID: JZS130G
Dates releasing: 1996.9~
Base price, ¥: E-JZS130G
Body size: 4860x1725x1550
Interior (LxWxH): 1895x1475x1230
Wheelbase: 2730
Track f/r: 1465mm/1410mm
Full weight, kg: 1580
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 1JZ-GE
Type: water cooling inline 6 cylinder DOHC 24-valves
Bore x stroke, mm: 86.0x71.5
Engine size, cc: 2491
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 200ps(147kW)/6000rpm
Max torque, Nm/rpm: 26.0kg m(255.0N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 64 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 11

Steering & suspension

Steering: Other
Front suspension: Double wishbone type コイルばね
Rear suspension: トレーリングリンク Axle コイルばね
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 205/65R15 94H
Rear wheel: 205/65R15 94H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.531	1.531	1.000	0.705	—	—	—	—	1.880

Available colors

blackwhite / Super White IIgreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyan / Other Dark cyanPearl / Other PearlGold
