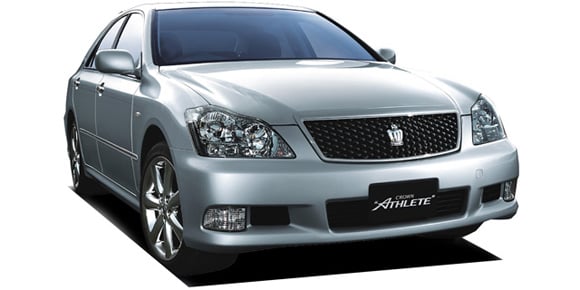

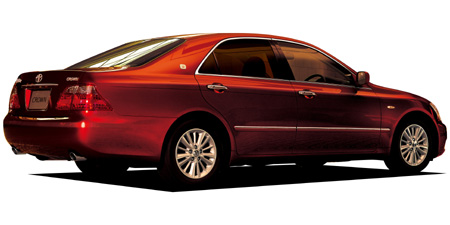

TOYOTA CROWN ATHLETE

TOYOTA CROWN

GRS180 · ATHLETE

Description

Modification: ATHLETE
Chassis ID: GRS180
Dates releasing: 2005.10~
Base price, ¥: DBA-GRS180
Body size: 4840x1780x1470
Interior (LxWxH): 2070x1535x1200
Wheelbase: 2850
Track f/r: 1525mm/1525mm
Full weight, kg: 1560
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

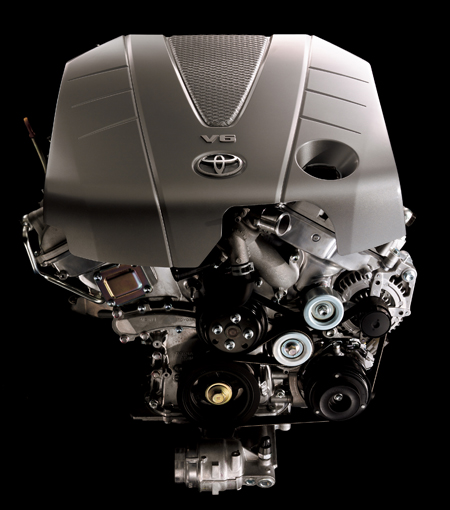

Engine

Model: 4GR-FSE
Type: V-type 6 cylinder DOHC
Bore x stroke, mm: 83.0x77.0
Engine size, cc: 2499
Compression ratio: 12.0
Fuel injection: 筒内直接燃料噴射装置
Max power, hp/rpm: 215ps(158kW)/6400rpm
Max torque, Nm/rpm: 26.5kg m(260N m)/3800rpm
Supercharger: ×
Fuel tank, liters: 71 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Coil spring
Rear suspension: Multi-link Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R18 91W
Rear wheel: 225/45R18 91W
Min turn diameter, m: 5.2

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

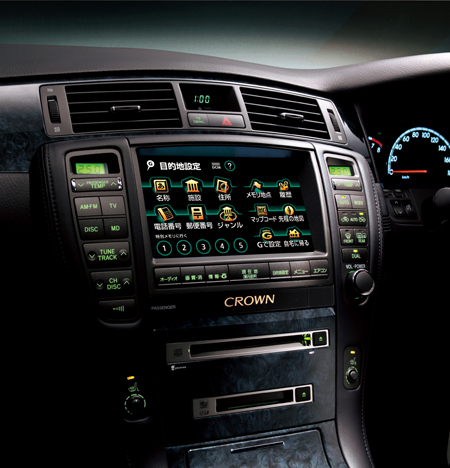

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FM radio with MD player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.538	2.060	1.404	1.000	0.713	0.582	—	—	3.168

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
