TOYOTA CROWN ATHLETE

TOYOTA CROWN

GRS204 · ATHLETE

Description

Modification: ATHLETE
Chassis ID: GRS204
Dates releasing: 2010.2~
Base price, ¥: DBA-GRS204
Body size: 4870x1795x1470
Interior (LxWxH): 2060x1520x1205
Wheelbase: 2850
Track f/r: 1535mm/1535mm
Full weight, kg: 1650
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2GR-FSE
Type: V-type 6 cylinder DOHC
Bore x stroke, mm: 94.0x83.0
Engine size, cc: 3456
Compression ratio: 11.8
Fuel injection: 筒内直接+ポート燃料噴射装置
Max power, hp/rpm: 315ps(232kW)/6400rpm
Max torque, Nm/rpm: 38.4kg m(377N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 71 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10

Steering & suspension

Steering: Power assist equipped rack&pinion

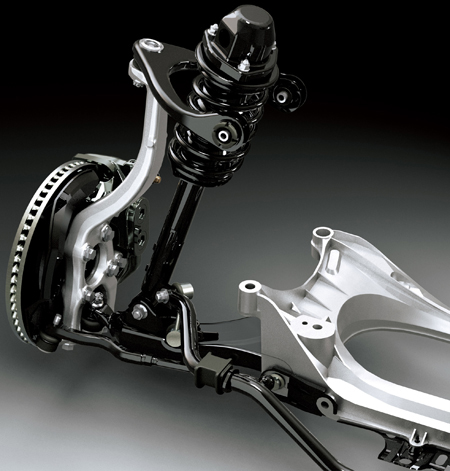

Front suspension: Double wishbone type Coil spring

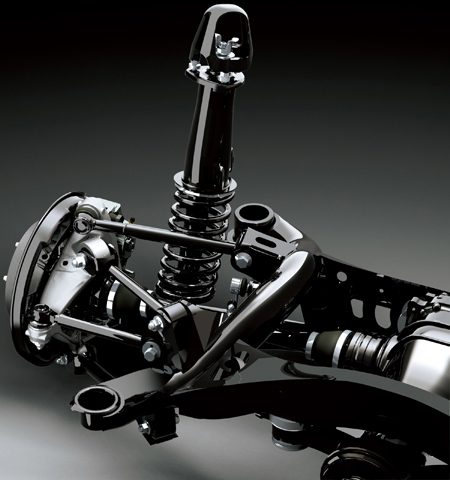

Rear suspension: Multi-link Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R18 91W
Rear wheel: 225/45R18 91W
Min turn diameter, m: 5.2

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

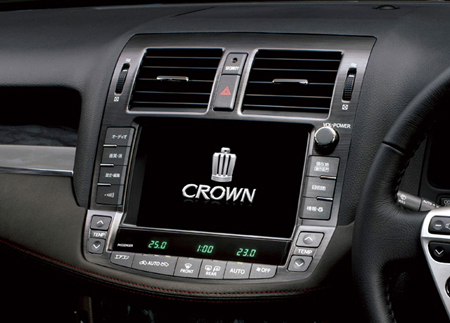

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.520	2.042	1.400	1.000	0.716	0.586	—	—	3.224

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
