JDM Vehicle Catalog

Vehicle Specs

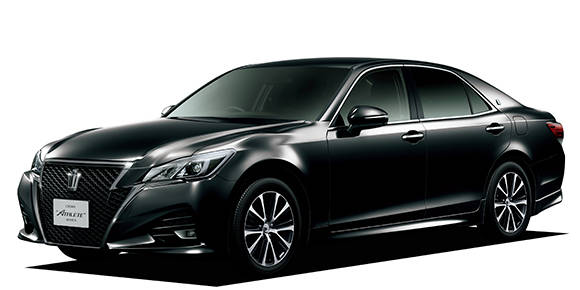

TOYOTA CROWN ATHLETE-T

TOYOTA CROWN

ARS210 · ATHLETE-T

Description

Modification: ATHLETE-T
Chassis ID: ARS210
Dates releasing: 2016.8~
Base price, ¥: DBA-ARS210
Body size: 4895x1800x1450
Interior (LxWxH): 1975x1510x1190
Wheelbase: 2850
Track f/r: 1545mm/1545mm
Full weight, kg: 1590
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 8AR-FTS
Type: inline 4 cylinder DOHCIC-turbo
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 10.0
Fuel injection: 筒内直接+ポート燃料噴射装置<D-4ST>
Max power, hp/rpm: 235ps(173kW)/5200~5800rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1650~4400rpm
Supercharger: IC turbo
Fuel tank, liters: 65 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Coil spring
Rear suspension: Multi-link Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55R17 94V
Rear wheel: 215/55R17 94V
Min turn diameter, m: 5.2

Gearbox

Number of stages: 8AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.596	2.724	1.863	1.464	1.231	1.000	0.824	0.685	4.056

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / White Pearl Crystal ShineGold
