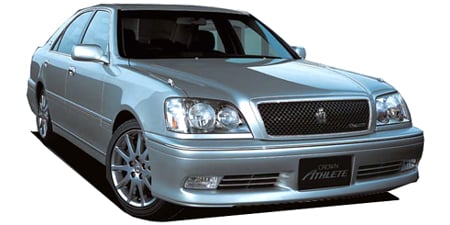

TOYOTA CROWN ATHLETE VX

TOYOTA CROWN

JZS171 · ATHLETE VX

Description

Modification: ATHLETE VX
Chassis ID: JZS171
Dates releasing: 2001.8~
Base price, ¥: GH-JZS171
Body size: 4820x1765x1440
Interior (LxWxH): 2030x1510x1185
Wheelbase: 2780
Track f/r: 1495mm/1470mm
Full weight, kg: 1610
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC(ビークルスタビリティコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ◯
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1JZ-GTE
Type: water cooling inline 6 cylinder DOHC 24-valves turbo
Bore x stroke, mm: 86.0x71.5
Engine size, cc: 2491
Compression ratio: 9.0
Fuel injection: EFI
Max power, hp/rpm: 300ps(220kW)/6200rpm
Max torque, Nm/rpm: 40.0kg m(390N m)/2400rpm
Supercharger: Turbo
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/40ZR18
Rear wheel: 245/40ZR18
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.705	—	—	—	—	2.393

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
