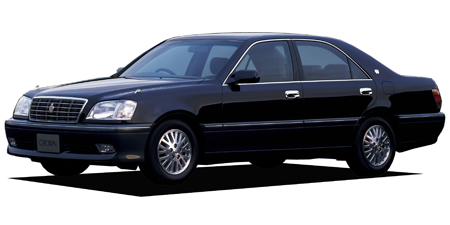

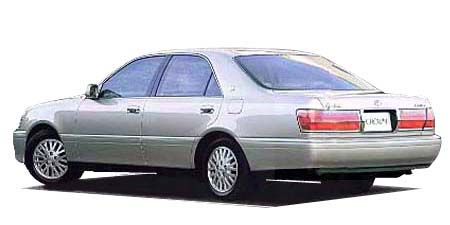

TOYOTA CROWN ROYAL EXTRA

TOYOTA CROWN

GS171 · ROYAL EXTRA

Description

Modification: ROYAL EXTRA
Chassis ID: GS171
Dates releasing: 2000.4~
Base price, ¥: GH-GS171
Body size: 4820x1765x1465
Interior (LxWxH): 2030x1510x1185
Wheelbase: 2780
Track f/r: 1495mm/1470mm
Full weight, kg: 1470
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

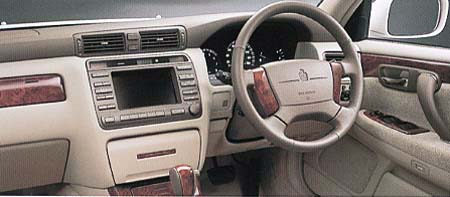

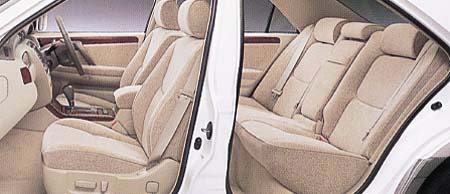

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 1G-FE
Type: water cooling inline 6 cylinder DOHC 24-valves
Bore x stroke, mm: 75.0x75.0
Engine size, cc: 1988
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 160ps(118kW)/6200rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15 91H
Rear wheel: 195/65R15 91H
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.450	1.450	1.000	0.688	—	—	—	—	2.222

Available colors

blackwhite / Super White II / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold
