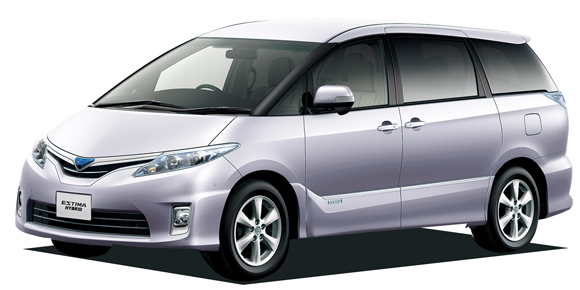

TOYOTA ESTIMA HYBRID G

TOYOTA ESTIMA HYBRID

AHR20W · G

Description

Modification: G
Chassis ID: AHR20W
Dates releasing: 2009.12~
Base price, ¥: DAA-AHR20W
Body size: 4800x1820x1760
Interior (LxWxH): 3010x1580x1255
Wheelbase: 2950
Track f/r: 1545mm/1550mm
Full weight, kg: 1950
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDIM(EBD付ABS VSC TRC EPS統合制御) ECB(電子制御ブレーキシステム)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2AZ-FXE
Type: inline 4 cylinder DOHC+
Bore x stroke, mm: 88.5x96.0
Engine size, cc: 2362
Compression ratio: 12.5
Fuel injection: EFI
Max power, hp/rpm: 150ps(110kW)/6000rpm
Max torque, Nm/rpm: 19.4kg m(190N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/60R17
Rear wheel: 215/60R17
Min turn diameter, m: 5.7

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P) / Light blue metallicMagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
