JDM Vehicle Catalog

Vehicle Specs

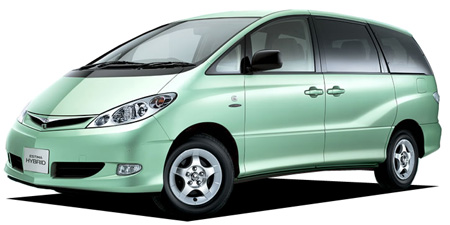

TOYOTA ESTIMA HYBRID G SELECTION

TOYOTA ESTIMA HYBRID

AHR10W · G SELECTION

Description

Modification: G SELECTION
Chassis ID: AHR10W
Dates releasing: 2003.7~
Base price, ¥: ZA-AHR10W
Body size: 4795x1790x1780
Interior (LxWxH): 3030x1560x1265
Wheelbase: 2900
Track f/r: 1545mm/1530mm
Full weight, kg: 1850
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC(ビークルスタビリティコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2AZ-FXE
Type: inline 4 cylinder DOHC+
Bore x stroke, mm: 88.5x96.0
Engine size, cc: 2362
Compression ratio: 12.5
Fuel injection: EFI
Max power, hp/rpm: 131ps(96kW)/5600rpm
Max torque, Nm/rpm: 19.4kg m(190N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/65R15 94H
Rear wheel: 205/65R15 94H
Min turn diameter, m: 5.6

Gearbox

Number of stages: CVT

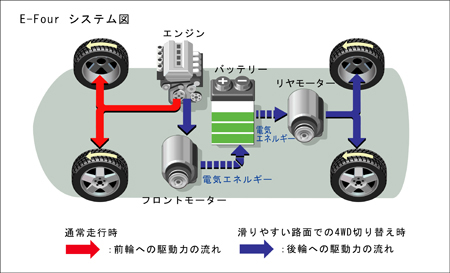

Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	2.396~1.211

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-green / Light green metallicBlack (P) / Other Black (P)MagentaSilverRedBlueDark cyanPearl / Pearl WhiteGold
