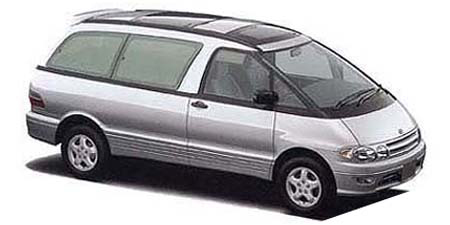

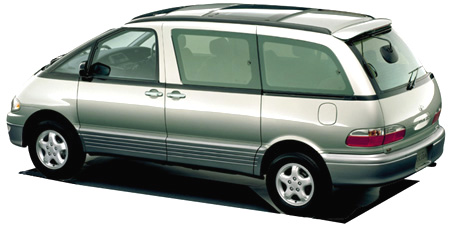

TOYOTA ESTIMA LUCIDA X

TOYOTA ESTIMA LUCIDA

CXR10G · X

Description

Modification: X
Chassis ID: CXR10G
Dates releasing: 1998.1~
Base price, ¥: KD-CXR10G
Body size: 4690x1690x1820
Interior (LxWxH): 2890x1520x1220
Wheelbase: 2860
Track f/r: 1450mm/1440mm
Full weight, kg: 1690
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ツイン
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 3C-TE
Type: inline 4 cylinder OHCIC-turbo (Diesel)
Bore x stroke, mm: 86.0x94.0
Engine size, cc: 2184
Compression ratio: 22.6
Fuel injection: EFI(電子制御分配型)
Max power, hp/rpm: 105ps(77kW)/4200rpm
Max torque, Nm/rpm: 23.0kg m(225.6N m)/2600rpm
Supercharger: IC turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: 4リンクコイル type スプリング
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/65R15 96H
Rear wheel: 215/65R15 96H
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: Mid-ship
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.730	—	—	—	—	2.730

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyan / Other Dark cyanPearl / Other PearlGold
