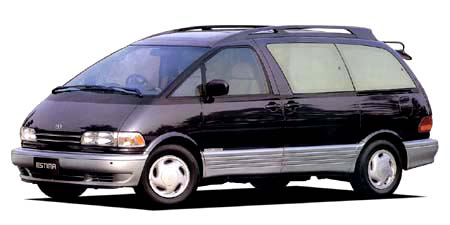

TOYOTA ESTIMA BLACK SELECTION

TOYOTA ESTIMA

TCR10W · BLACK SELECTION

Description

Modification: BLACK SELECTION
Chassis ID: TCR10W
Dates releasing: 1997.9~
Base price, ¥: E-TCR10W
Body size: 4750x1800x1780
Interior (LxWxH): 2800x1635x1220
Wheelbase: 2860
Track f/r: 1560mm/1550mm
Full weight, kg: 1700
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ツイン
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 2TZ-FZE
Type: inline 4 cylinder DOHC 16-valves ICSチャー&#12
Bore x stroke, mm: 95.0x86.0
Engine size, cc: 2438
Compression ratio: 8.9
Fuel injection: EFI
Max power, hp/rpm: 160ps(118kW)/5000rpm
Max torque, Nm/rpm: 26.3kg m(257.9N m)/3600rpm
Supercharger: S charger
Fuel tank, liters: 75 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 11.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring ( 4-link )
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/65R15 96H
Rear wheel: 215/65R15 96H
Min turn diameter, m: 5.7

Gearbox

Number of stages: 4AT
Drive: Mid-ship
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: CD
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Black MetallicwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
