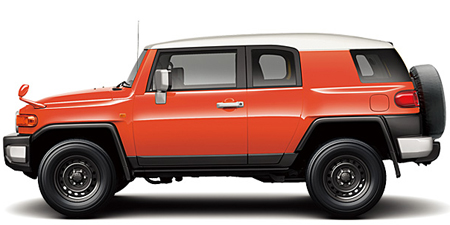

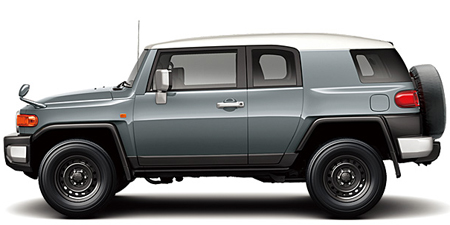

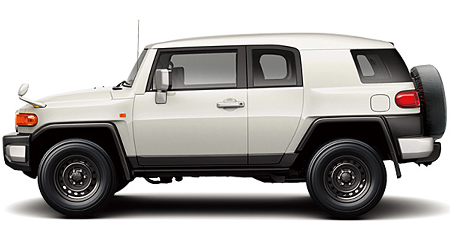

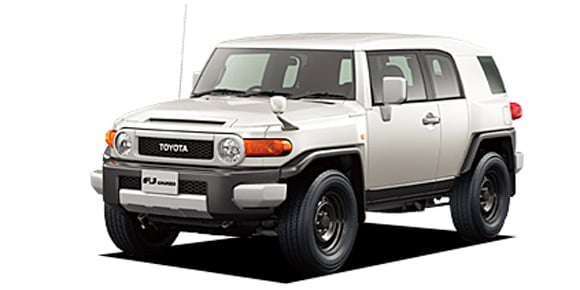

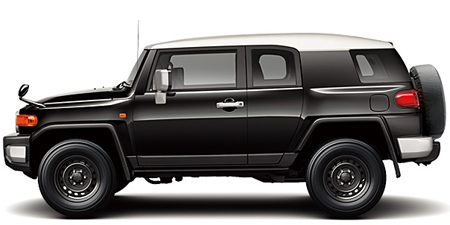

TOYOTA FJ CRUISER BASE GRADE

TOYOTA FJ CRUISER

GSJ15W · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: GSJ15W
Dates releasing: 2012.7~
Base price, ¥: CBA-GSJ15W
Body size: 4635x1905x1840

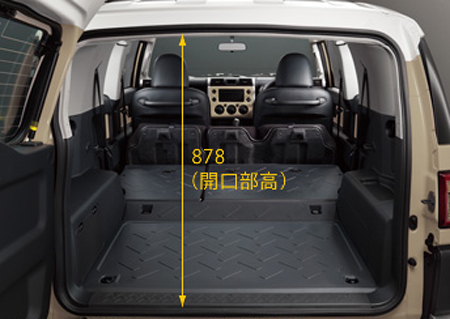

Interior (LxWxH): 1785x1560x1225
Wheelbase: 2690
Track f/r: 1605mm/1605mm
Full weight, kg: 1940
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

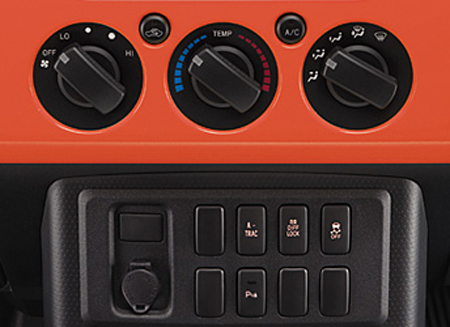

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓

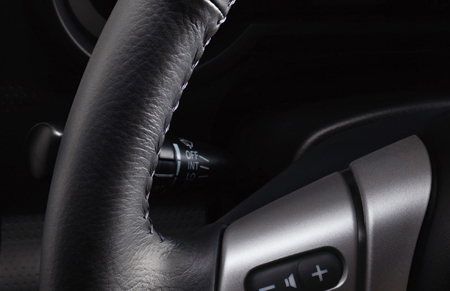

Cruise control: ◯
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES

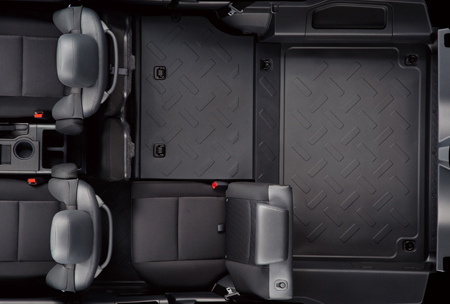

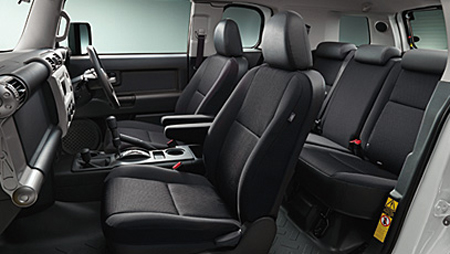

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: 1GR-FE
Type: V-type 6 cylinder DOHC
Bore x stroke, mm: 94.0x95.0
Engine size, cc: 3955
Compression ratio: 10.4
Fuel injection: EFI
Max power, hp/rpm: 276ps(203kW)/5600rpm
Max torque, Nm/rpm: 38.8kg m(380N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 72 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 12.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Independent suspension Coil spring (stabilizer attaching)
Rear suspension: トレーリングリンク Axle Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 265/70R17
Rear wheel: 265/70R17
Min turn diameter, m: 6.2

Gearbox

Number of stages: 5AT

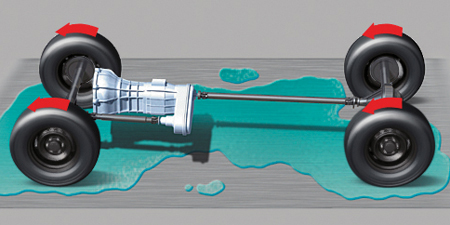

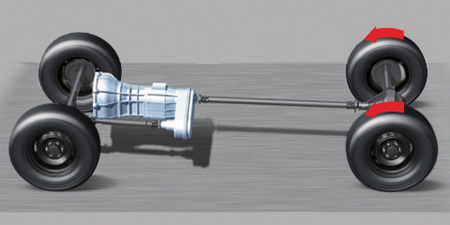

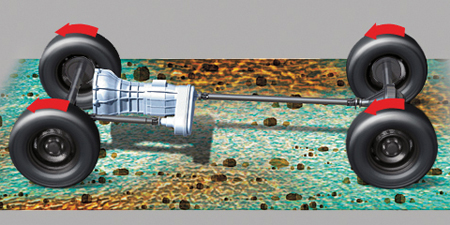

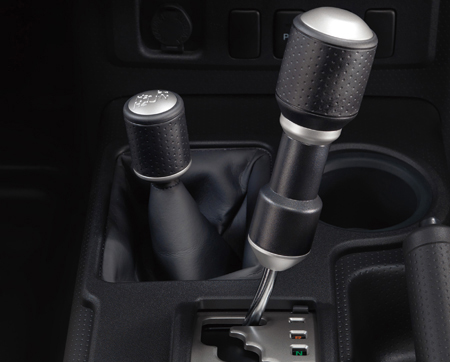

Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.520	2.042	1.400	1.000	0.716	—	—	—	3.224

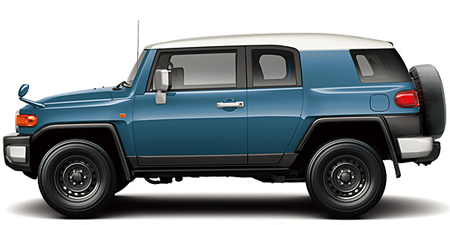

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
