JDM Vehicle Catalog

Vehicle Specs

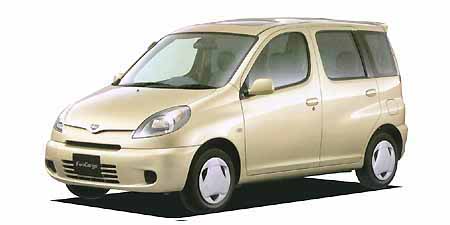

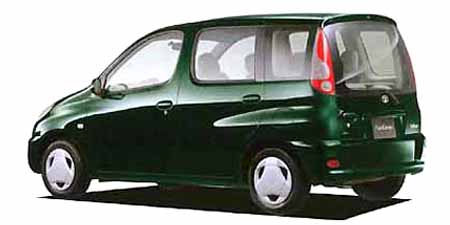

TOYOTA FUNCARGO J

TOYOTA FUNCARGO

NCP20 · J

Description

Modification: J
Chassis ID: NCP20
Dates releasing: 2001.9~
Base price, ¥: TA-NCP20
Body size: 3860x1660x1680
Interior (LxWxH): 1905x1370x1290
Wheelbase: 2500
Track f/r: 1440mm/1420mm
Full weight, kg: 1010
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ◯
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: 2NZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x73.5
Engine size, cc: 1298
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 88ps(65kW)/6000rpm
Max torque, Nm/rpm: 12.5kg m(123N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R14 82S
Rear wheel: 175/65R14 82S
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.875	1.568	1.000	0.697	—	—	—	—	2.300

Available colors

black / black mica / Other blackwhite / Other whitegreen / Dark green mica / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Other SilverRed / Super Red V / Other RedBlue / Blue mica / Other BlueDark cyanPearlGold / Champagne metallic / Other Gold
