JDM Vehicle Catalog

Vehicle Specs

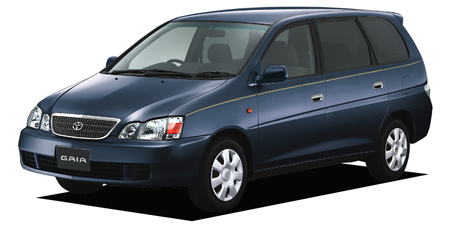

TOYOTA GAIA LIMITED

TOYOTA GAIA

ACM15G · LIMITED

Description

Modification: LIMITED
Chassis ID: ACM15G
Dates releasing: 2002.12~
Base price, ¥: TA-ACM15G
Body size: 4620x1695x1665
Interior (LxWxH): 2565x1435x1235
Wheelbase: 2735
Track f/r: 1470mm/1450mm
Full weight, kg: 1500
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1AZ-FSE(D-4)
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.8
Fuel injection: 筒内直接燃料噴射装置(D-4)
Max power, hp/rpm: 152ps(112kW)/6000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/60R15
Rear wheel: 195/60R15
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.005	2.208	1.425	0.981	—	—	—	—	3.272

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Pearl WhiteGold
