JDM Vehicle Catalog

Vehicle Specs

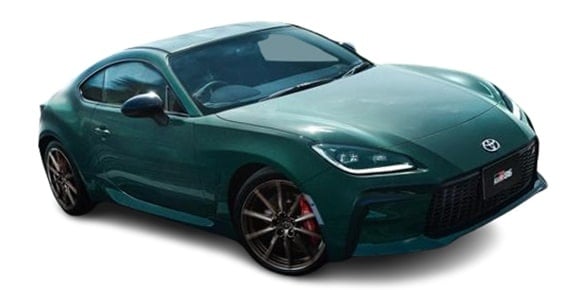

TOYOTA GR86 RZ RIDGE GREEN LIMITED

TOYOTA GR86

ZN8 · RZ RIDGE GREEN LIMITED

Description

Modification: RZ RIDGE GREEN LIMITED
Chassis ID: ZN8
Dates releasing: 2024.10~
Base price, ¥: 3BA-ZN8
Body size: 4265x1775x1310
Interior (LxWxH): 1625x1480x1060
Wheelbase: 2575
Track f/r: 1520mm/1550mm
Full weight, kg: 1300
Body type: Coupe
Doors / seats: 2 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

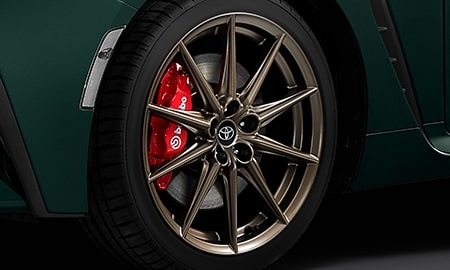

Alloy wheels: 18 inches standard
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: FA24
Type: horizontally-opposed 4 cylinder DOHC
Bore x stroke, mm: 94.0x86.0
Engine size, cc: 2387
Compression ratio: ----
Fuel injection: 筒内直接+ポート燃料噴射装置(D-4S)
Max power, hp/rpm: 235ps(173kW)/7000rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/3700rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/40R18
Rear wheel: 215/40R18
Min turn diameter, m: 5.4

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.538	2.060	1.404	1.000	0.713	0.582	—	—	3.168

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
