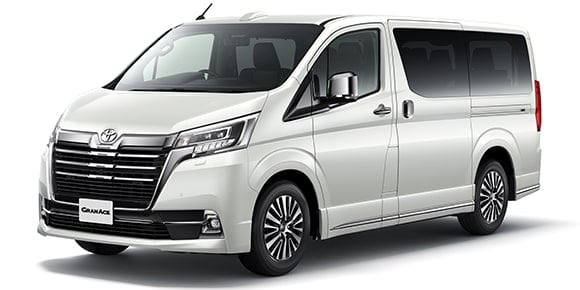

TOYOTA GRANACE G

TOYOTA GRANACE

GDH303W · G

Description

Modification: G
Chassis ID: GDH303W
Dates releasing: 2023.10~
Base price, ¥: 3DA-GDH303W
Body size: 5300x1970x1990
Interior (LxWxH): 3365x1735x1290
Wheelbase: 3210
Track f/r: 1670mm/1670mm
Full weight, kg: 2770
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ✓
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1GD-FTV
Type: inline 4 cylinder DOHCIC-turbo (Diesel)
Bore x stroke, mm: 92.0x103.6
Engine size, cc: 2754
Compression ratio: ----
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 177ps(130kW)/3400rpm
Max torque, Nm/rpm: 45.9kg m(450N m)/1600~2400rpm
Supercharger: IC turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 235/60R17
Rear wheel: 235/60R17
Min turn diameter, m: 5.6

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.600	2.090	1.488	1.000	0.687	0.580	—	—	3.732

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
