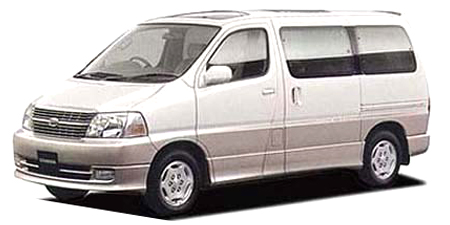

TOYOTA GRANVIA G CRUISING LIMITED

TOYOTA GRANVIA

VCH10W · G CRUISING LIMITED

Description

Modification: G CRUISING LIMITED
Chassis ID: VCH10W
Dates releasing: 2001.8~
Base price, ¥: GF-VCH10W
Body size: 4790x1830x1965
Interior (LxWxH): 2890x1635x1365
Wheelbase: 2985
Track f/r: 1560mm/1540mm
Full weight, kg: 1950
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ツイン
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 5VZ-FE
Type: water cooling V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 93.5x82.0
Engine size, cc: 3378
Compression ratio: 9.6
Fuel injection: 電子制御 type 燃料噴射装置(EFI)
Max power, hp/rpm: 180ps(132kW)/4800rpm
Max torque, Nm/rpm: 30.5kg m(299N m)/3600rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 12.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type アッパーアームトーションバ&#1
Rear suspension: セミトレーリングアーム type Coil spring ( Independent suspensi
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 205/70R15 95H
Rear wheel: 205/70R15 95H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.753	—	—	—	—	2.393

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
