TOYOTA GRANVIA G DUAL SLIDE DOOR SELECTION

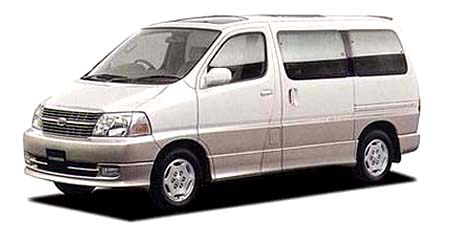

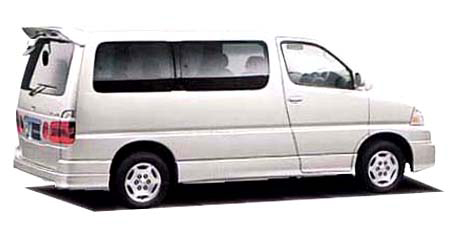

TOYOTA GRANVIA

KCH10W · G DUAL SLIDE DOOR SELECTION

Description

Modification: G DUAL SLIDE DOOR SELECTION
Chassis ID: KCH10W
Dates releasing: 2000.4~
Base price, ¥: KH-KCH10W
Body size: 4790x1800x1965
Interior (LxWxH): 2890x1640x1375
Wheelbase: 2985
Track f/r: 1560mm/1540mm
Full weight, kg: 2010
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ツイン
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 1KZ-TE
Type: water cooling inline 4 cylinder OHCIC-turbo (Diesel)
Bore x stroke, mm: 96.0x103.0
Engine size, cc: 2982
Compression ratio: 21.0
Fuel injection: 電子制御 type 分配型燃料噴射ポンプ(EFI)
Max power, hp/rpm: 140ps(103kW)/3600rpm
Max torque, Nm/rpm: 35.0kg m(343N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 75 l
Fuel: Diesel
Fuel consumption, l/100km: 10.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type アッパーアームトーションバ&#1
Rear suspension: セミトレーリングアーム type Coil spring ( Independent suspensi
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 205/70R15 95H
Rear wheel: 205/70R15 95H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.705	—	—	—	—	2.393

Available colors

blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
