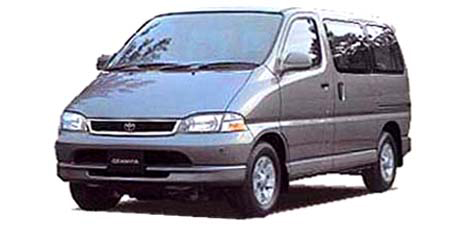

TOYOTA GRANVIA G LIMITED

TOYOTA GRANVIA

RCH11W · G LIMITED

Description

Modification: G LIMITED
Chassis ID: RCH11W
Dates releasing: 1996.4~
Base price, ¥: E-RCH11W
Body size: 4715x1800x1965
Interior (LxWxH): 2910x1635x1375
Wheelbase: 2985
Track f/r: 1560mm/1540mm
Full weight, kg: ----
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3RZ-FE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 95.0x95.0
Engine size, cc: 2693
Compression ratio: 9.5
Fuel injection: EFI
Max power, hp/rpm: 145ps(107kW)/4800rpm
Max torque, Nm/rpm: 22.6kg m(221.6N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type アッパーアームトーションバ&#1
Rear suspension: セミトレーリングアーム type Coil spring ( Independent suspensi
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 205/70R15 95H
Rear wheel: 205/70R15 95H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.452	1.452	1.000	0.688	—	—	—	—	2.212

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
