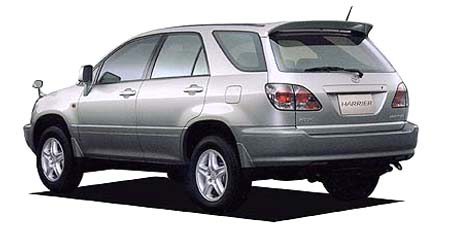

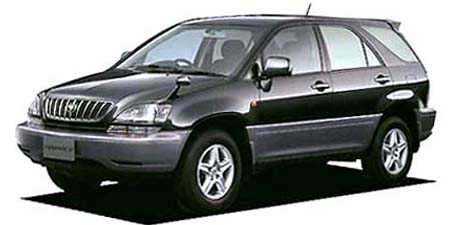

TOYOTA HARRIER 3.0

TOYOTA HARRIER

MCU10W · 3.0

Description

Modification: 3.0
Chassis ID: MCU10W
Dates releasing: 2000.11~
Base price, ¥: TA-MCU10W
Body size: 4575x1815x1665
Interior (LxWxH): 1985x1500x1205
Wheelbase: 2615
Track f/r: 1565mm/1550mm
Full weight, kg: 1650
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1MZ-FE
Type: water cooling V-type 6 cylinder DOHC
Bore x stroke, mm: 87.5x83.0
Engine size, cc: 2994
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 220ps(162kW)/5800rpm
Max torque, Nm/rpm: 31.0kg m(304N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Strut type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/70R16 99S
Rear wheel: 215/70R16 99S
Min turn diameter, m: 5.7

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.938	2.194	1.411	1.019	—	—	—	—	3.141

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
