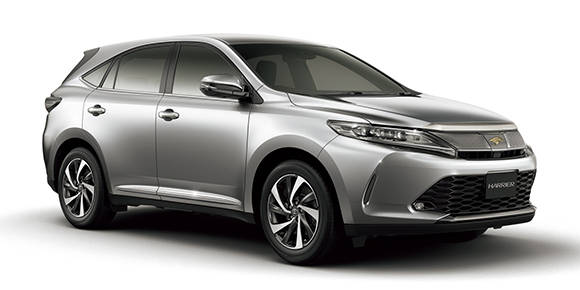

TOYOTA HARRIER ELEGANCE

TOYOTA HARRIER

ASU65W · ELEGANCE

Description

Modification: ELEGANCE
Chassis ID: ASU65W
Dates releasing: 2017.6~
Base price, ¥: DBA-ASU65W
Body size: 4725x1835x1690
Interior (LxWxH): 1965x1480x1220
Wheelbase: 2660
Track f/r: 1560mm/1560mm
Full weight, kg: 1700
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto

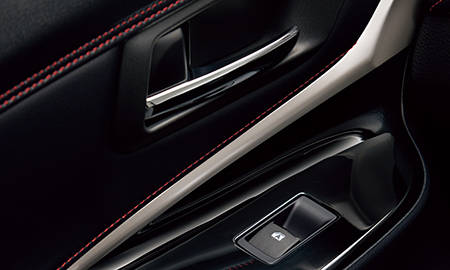

Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

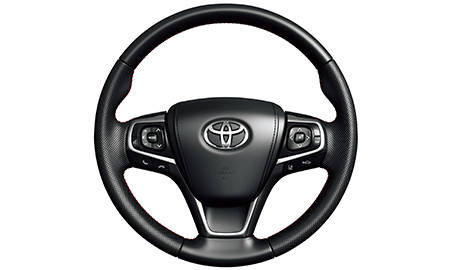

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 18 inches standard

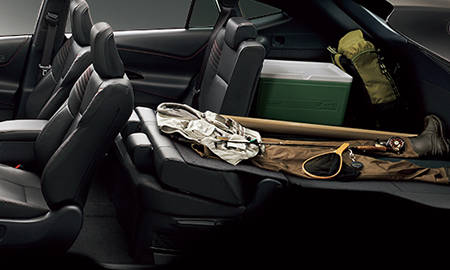

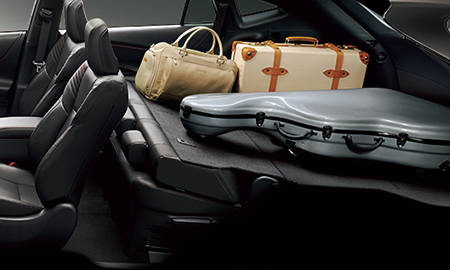

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

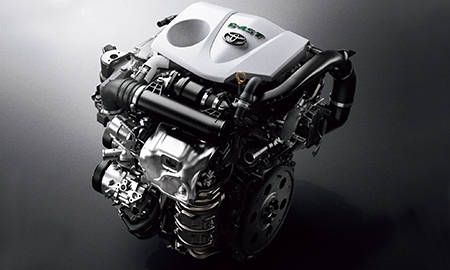

Engine

Model: 8AR-FTS
Type: inline 4 cylinder DOHCIC-turbo
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: ----
Fuel injection: EFI
Max power, hp/rpm: 231ps(170kW)/5200~5600rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1650~4000rpm
Supercharger: IC turbo
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/55R18
Rear wheel: 235/55R18
Min turn diameter, m: 5.6

Gearbox

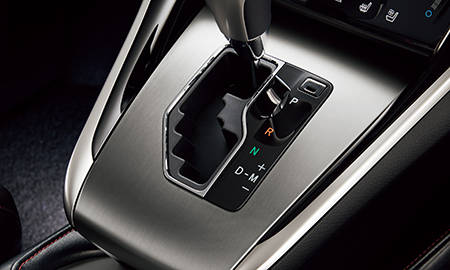

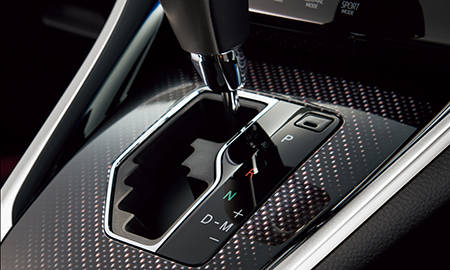

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.300	1.900	1.420	1.000	0.713	0.608	—	—	4.148

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Dark blue mica metallicDark cyanPearl / White Pearl Crystal ShineGold
