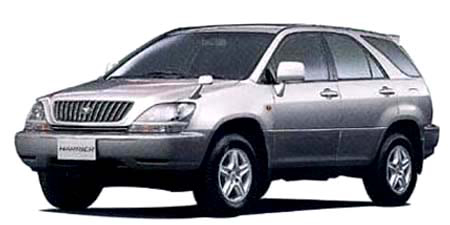

TOYOTA HARRIER EXTRA G PACKAGE

TOYOTA HARRIER

SXU10W · EXTRA G PACKAGE

Description

Modification: EXTRA G PACKAGE
Chassis ID: SXU10W
Dates releasing: 1999.4~
Base price, ¥: GF-SXU10W
Body size: 4575x1815x1665
Interior (LxWxH): 1985x1500x1205
Wheelbase: 2615
Track f/r: 1565mm/1550mm
Full weight, kg: 1570
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 5S-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 87.0x91.0
Engine size, cc: 2163
Compression ratio: 9.8
Fuel injection: EFI
Max power, hp/rpm: 140ps(103kW)/5600rpm
Max torque, Nm/rpm: 19.5kg m(191.2N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 10.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Strut type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/70R16 99S
Rear wheel: 215/70R16 99S
Min turn diameter, m: 5.7

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.938	2.194	1.411	1.019	—	—	—	—	3.141

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
