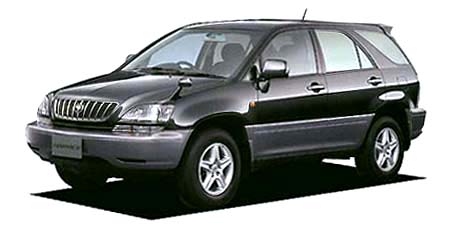

TOYOTA HARRIER FOUR PRIME NAVI SELECTION

TOYOTA HARRIER

ACU15W · FOUR PRIME NAVI SELECTION

Description

Modification: FOUR PRIME NAVI SELECTION
Chassis ID: ACU15W
Dates releasing: 2002.1~
Base price, ¥: TA-ACU15W
Body size: 4575x1815x1665
Interior (LxWxH): 1985x1500x1205
Wheelbase: 2615
Track f/r: 1565mm/1550mm
Full weight, kg: 1660
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2AZ-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 88.5x96.0
Engine size, cc: 2362
Compression ratio: 9.6
Fuel injection: EFI
Max power, hp/rpm: 160ps(118kW)/5600rpm
Max torque, Nm/rpm: 22.5kg m(221N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 10

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Strut type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/70R16 99S
Rear wheel: 215/70R16 99S
Min turn diameter, m: 5.7

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.938	2.194	1.411	1.019	—	—	—	—	3.141

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
