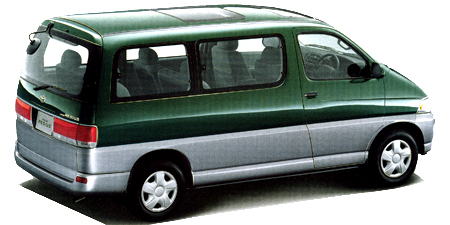

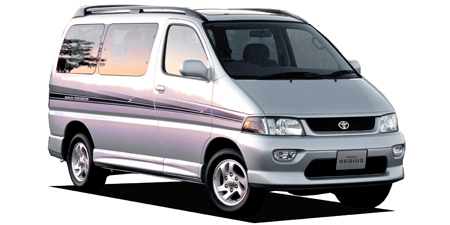

TOYOTA HIACE REGIUS WIND TOURER

TOYOTA HIACE REGIUS

RCH41W · WIND TOURER

Description

Modification: WIND TOURER
Chassis ID: RCH41W
Dates releasing: 1997.4~
Base price, ¥: E-RCH41W
Body size: 4795x1710x2025
Interior (LxWxH): 2930x1530x1365
Wheelbase: 2985
Track f/r: 1455mm/1435mm
Full weight, kg: 1870
Body type: MV 1Box

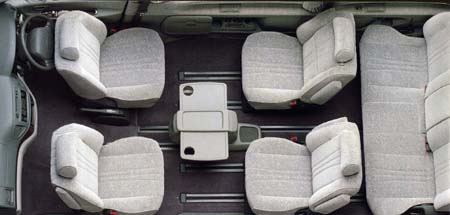

Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

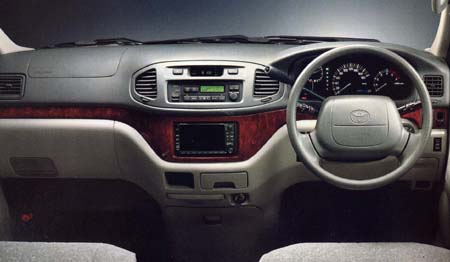

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ツイン
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 3RZ-FE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 95.0x95.0
Engine size, cc: 2693
Compression ratio: 9.5
Fuel injection: 電子制御 type 燃料噴射装置(EFI)
Max power, hp/rpm: 145ps(107kW)/4800rpm
Max torque, Nm/rpm: 23.2kg m(227.5N m)/3600rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 12

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type アッパーアームトーションバ&#1
Rear suspension: セミトレーリングアーム type Coil spring ( Independent suspensi
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/65R15 96H
Rear wheel: 215/65R15 96H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.452	1.452	1.000	0.688	—	—	—	—	2.212

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
