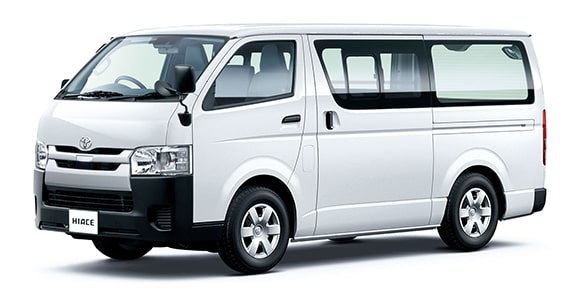

TOYOTA HIACE VAN DX

TOYOTA HIACE VAN

TRH200V · DX

Description

Modification: DX
Chassis ID: TRH200V
Dates releasing: 2021.7~
Base price, ¥: 3BF-TRH200V
Body size: 4695x1695x1985
Interior (LxWxH): ----x----x----
Wheelbase: 2570
Track f/r: 1470mm/1465mm
Full weight, kg: 1740
Body type: Cab-over van
Doors / seats: 5 door / 3

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: 1TR-FE
Type: inline 4 cylinder
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: ----
Fuel injection: EFI
Max power, hp/rpm: 136ps(100kW)/5600rpm
Max torque, Nm/rpm: 18.6kg m(182N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type トーションバースプリング
Rear suspension: Axle 半楕円板ばね
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/75R15 106/104N LT
Rear wheel: 185/75R15 106/104N LT
Min turn diameter, m: 5.0

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.600	2.090	1.488	1.000	0.687	0.580	—	—	3.732

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlue / Dark blue mica metallicDark cyanPearlGold
