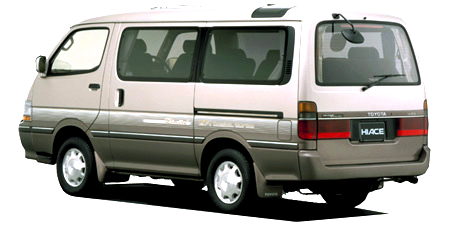

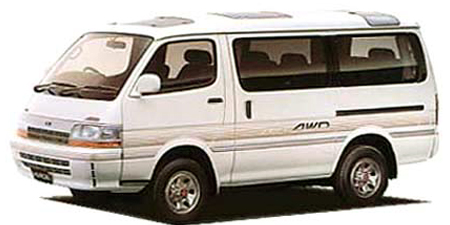

TOYOTA HIACE WAGON CUSTOM

TOYOTA HIACE WAGON

LH100G · CUSTOM

Description

Modification: CUSTOM
Chassis ID: LH100G
Dates releasing: 1992.5~
Base price, ¥: Q-LH100G
Body size: 4615x1690x1935
Interior (LxWxH): 3155x1525x1330
Wheelbase: 2330
Track f/r: 1450mm/1430mm
Full weight, kg: 1690
Body type: MV 1Box
Doors / seats: 4 door / 9

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 2L
Type: water cooling inline 4 cylinder OHC (Diesel)
Bore x stroke, mm: 92.0x92.0
Engine size, cc: 2446
Compression ratio: 22.2
Fuel injection: ポッシュ type 分配型燃料噴射ポンプ
Max power, hp/rpm: 85ps(63kW)/4200rpm
Max torque, Nm/rpm: 16.8kg m(164.8N m)/2400rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ウイッシュボーン type トーションバー&#
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195SR14
Rear wheel: 195SR14
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.452	2.619	1.517	1.000	0.854	—	—	—	4.472

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Light blue metallicMagentaSilverRedBlueDark cyanPearlGold
