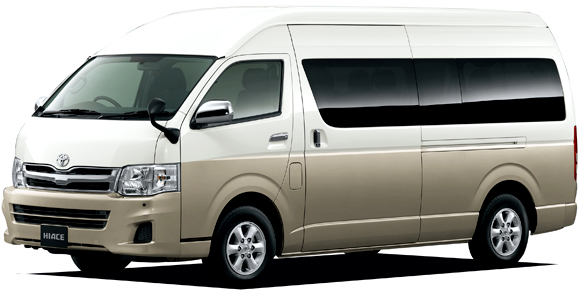

TOYOTA HIACE WAGON GRAND CABIN

TOYOTA HIACE WAGON

TRH229W · GRAND CABIN

Description

Modification: GRAND CABIN
Chassis ID: TRH229W
Dates releasing: 2010.7~
Base price, ¥: CBA-TRH229W
Body size: 5380x1880x2285
Interior (LxWxH): 3525x1695x1565
Wheelbase: 3110
Track f/r: 1655mm/1650mm
Full weight, kg: 2130
Body type: MV 1Box
Doors / seats: 4 door / 10

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

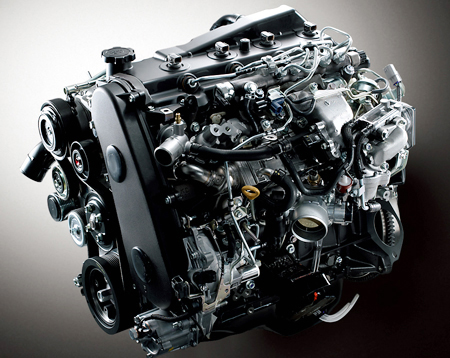

Engine

Model: 2TR-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 95.0x95.0
Engine size, cc: 2693
Compression ratio: 9.6
Fuel injection: EFI
Max power, hp/rpm: 151ps(111kW)/4800rpm
Max torque, Nm/rpm: 24.6kg m(241N m)/3800rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 12.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type トーションバースプリング
Rear suspension: Axle 半楕円板ばね
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/80R15 107/105L LT
Rear wheel: 195/80R15 107/105L LT
Min turn diameter, m: 6.3

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.753	—	—	—	—	2.393

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurple / Dark blue mica metallicAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearl / Other PearlGold / Other Gold
