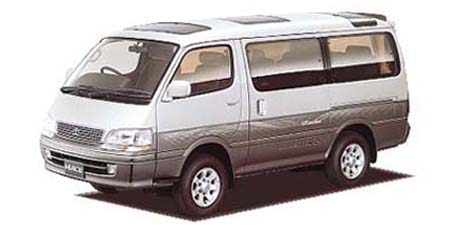

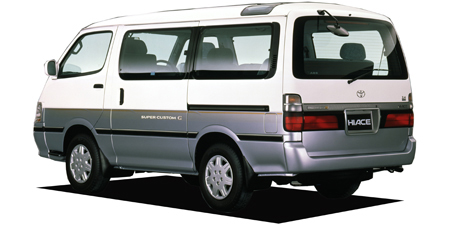

TOYOTA HIACE WAGON SUPER CUSTOM

TOYOTA HIACE WAGON

KZH100G · SUPER CUSTOM

Description

Modification: SUPER CUSTOM
Chassis ID: KZH100G
Dates releasing: 1996.8~
Base price, ¥: KD-KZH100G
Body size: 4640x1690x1950
Interior (LxWxH): 3155x1525x1335
Wheelbase: 2330
Track f/r: 1465mm/1445mm
Full weight, kg: 1900
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 1KZ-TE
Type: water cooling inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 96.0x103.0
Engine size, cc: 2982
Compression ratio: 21.2
Fuel injection: EFI
Max power, hp/rpm: 130ps(96kW)/3600rpm
Max torque, Nm/rpm: 29.5kg m(289.3N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type トーションバースプリング( Independe
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 205/70R15 95H
Rear wheel: 205/70R15 95H
Min turn diameter, m: 4.7

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.705	—	—	—	—	2.393

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-green / Light green metallicBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
