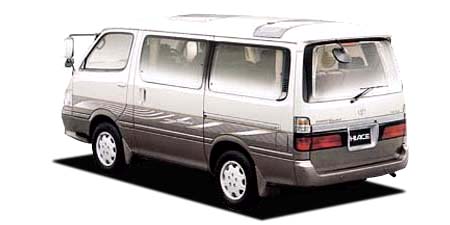

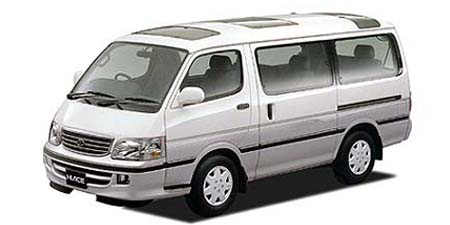

TOYOTA HIACE WAGON SUPER CUSTOM G

TOYOTA HIACE WAGON

RZH101G · SUPER CUSTOM G

Description

Modification: SUPER CUSTOM G
Chassis ID: RZH101G
Dates releasing: 1999.7~
Base price, ¥: GF-RZH101G
Body size: 4690x1690x1990
Interior (LxWxH): 3155x1525x1345
Wheelbase: 2330
Track f/r: 1465mm/1445mm
Full weight, kg: 1820
Body type: MV 1Box

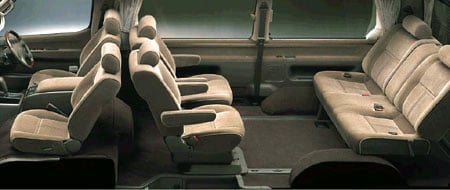

Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

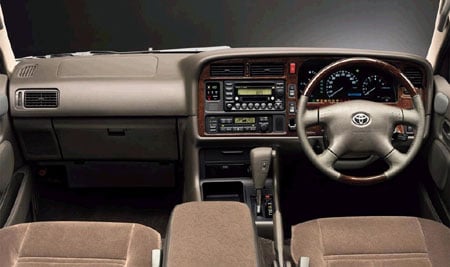

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: 特殊形状
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 2RZ-E
Type: water cooling inline 4 cylinder OHC
Bore x stroke, mm: 95.0x86.0
Engine size, cc: 2438
Compression ratio: 8.8
Fuel injection: EFI
Max power, hp/rpm: 120ps(88kW)/4800rpm
Max torque, Nm/rpm: 20.2kg m(198.1N m)/2600rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 13

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type トーションバースプリング( Independe
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 205/70R15 95H
Rear wheel: 205/70R15 95H
Min turn diameter, m: 4.7

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.730	—	—	—	—	2.703

Available colors

blackwhite / Other whitegreen / Dark green mica metallicMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyan / Light green metallicPearlGold
