JDM Vehicle Catalog

Vehicle Specs

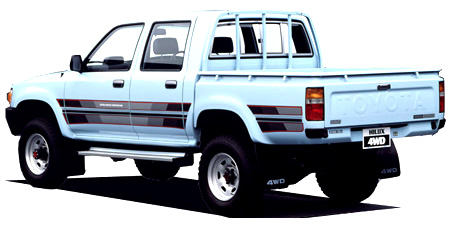

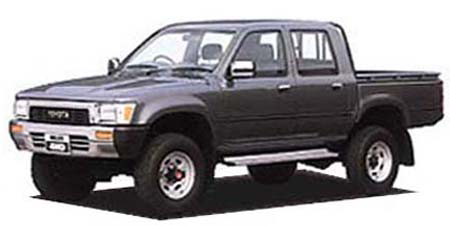

TOYOTA HILUX PICK UP DOUBLECAB SR

TOYOTA HILUX PICK UP

YN105 · DOUBLECAB SR

Description

Modification: DOUBLECAB SR
Chassis ID: YN105
Dates releasing: 1990.8~
Base price, ¥: T-YN105
Body size: 4690x1690x1790
Interior (LxWxH): ----x----x----
Wheelbase: 2840
Track f/r: 1430mm/1410mm
Full weight, kg: 1470
Body type: Pickup
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: ×
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3Y
Type: water cooling inline 4 cylinder OHV
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 8.8
Fuel injection: キャブレター
Max power, hp/rpm: 88ps(65kW)/4800rpm
Max torque, Nm/rpm: 15.8kg m(154.9N m)/3400rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: 半だ円リーフスプリング
Rear suspension: 半だ円リーフスプリング
Front brake: disk
Rear brake: Drum
Front wheel: 215R15-6PRLT
Rear wheel: 215R15-6PRLT
Min turn diameter, m: 6.4

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.928	2.330	1.451	1.000	0.851	—	—	—	4.743

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Red micaBlue / Other BlueDark cyanPearlGold
