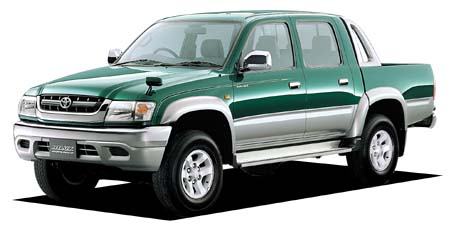

TOYOTA HILUX SPORTS PICK UP DOUBLE CAB WIDE BODY

TOYOTA HILUX SPORTS PICK UP

RZN169H · DOUBLE CAB WIDE BODY

Description

Modification: DOUBLE CAB WIDE BODY
Chassis ID: RZN169H
Dates releasing: 2001.8~
Base price, ¥: GC-RZN169H
Body size: 4790x1790x1795
Interior (LxWxH): ----x----x----
Wheelbase: 2855
Track f/r: 1485mm/1470mm
Full weight, kg: 1670
Body type: Pickup
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3RZ-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 95.0x95.0
Engine size, cc: 2693
Compression ratio: 9.5
Fuel injection: EFI電子制御燃料噴射装置
Max power, hp/rpm: 145ps(107kW)/4800rpm
Max torque, Nm/rpm: 24.0kg m(235N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 12

Steering & suspension

Steering: Other
Front suspension: Double wishbone type トーションバー
Rear suspension: 半だ円リーフスプリング
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 255/70R15LT
Rear wheel: 255/70R15LT
Min turn diameter, m: 6.1

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.705	—	—	—	—	2.393

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold / Other Gold
