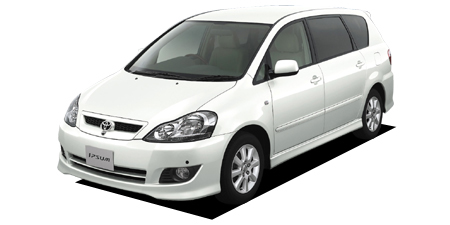

TOYOTA IPSUM 240I PREMIUM ALCANTARA VERSION

TOYOTA IPSUM

ACM26W · 240I PREMIUM ALCANTARA VERSION

Description

Modification: 240I PREMIUM ALCANTARA VERSION
Chassis ID: ACM26W
Dates releasing: 2004.12~
Base price, ¥: CBA-ACM26W
Body size: 4690x1760x1680
Interior (LxWxH): 2755x1505x1250
Wheelbase: 2825
Track f/r: 1505mm/1500mm
Full weight, kg: 1580
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2AZ-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 88.5x96.0
Engine size, cc: 2362
Compression ratio: 9.6
Fuel injection: EFI
Max power, hp/rpm: 160ps(118kW)/5700rpm
Max torque, Nm/rpm: 22.5kg m(221N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16 92H
Rear wheel: 205/60R16 92H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.938	2.194	1.411	1.019	—	—	—	—	3.141

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Pearl WhiteGold
