JDM Vehicle Catalog

Vehicle Specs

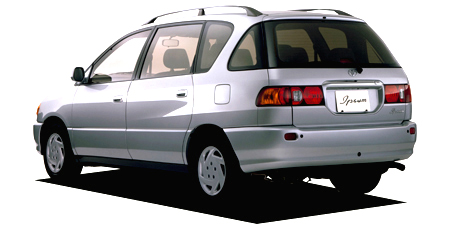

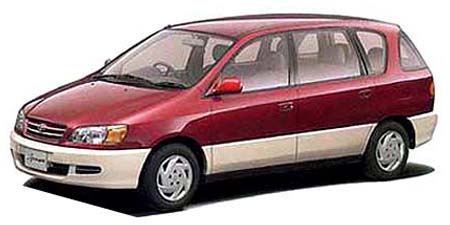

TOYOTA IPSUM BASEGRADE

TOYOTA IPSUM

SXM10G · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: SXM10G
Dates releasing: 1998.4~
Base price, ¥: GF-SXM10G
Body size: 4530x1695x1620
Interior (LxWxH): 2565x1435x1220
Wheelbase: 2735
Track f/r: 1470mm/1450mm
Full weight, kg: 1410
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ◯
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 3S-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.5
Fuel injection: EFI
Max power, hp/rpm: 135ps(99kW)/6000rpm
Max torque, Nm/rpm: 18.5kg m(181.4N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R14
Rear wheel: 195/65R14
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.643	2.008	1.296	0.892	—	—	—	—	2.977

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyan / Other Dark cyanPearl / Pearl WhiteGold
