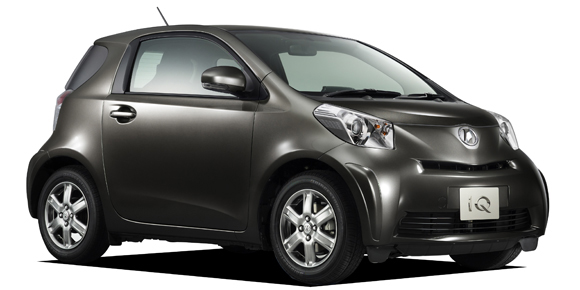

TOYOTA IQ130G LEATHER PACKAGE PLUS

TOYOTA IQ130G

NGJ10 · LEATHER PACKAGE PLUS

Description

Modification: LEATHER PACKAGE PLUS
Chassis ID: NGJ10
Dates releasing: 2010.5~
Base price, ¥: DBA-NGJ10
Body size: 2985x1680x1500
Interior (LxWxH): 1560x1515x1145
Wheelbase: 2000
Track f/r: 1475mm/1460mm
Full weight, kg: 950
Body type: Hatch
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NR-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 72.5x80.5
Engine size, cc: 1329
Compression ratio: 11.5
Fuel injection: EFI
Max power, hp/rpm: 94ps(69kW)/6000rpm
Max torque, Nm/rpm: 12.0kg m(118N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 32 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R15
Rear wheel: 175/65R15
Min turn diameter, m: 3.9

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505

Available colors

black / black micawhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurple / Other PurpleAshes / Gray metallicYellow / Other YellowYellow-greenBlack (P)MagentaSilverRed / Super Red VBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold
