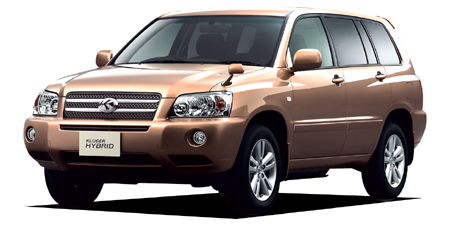

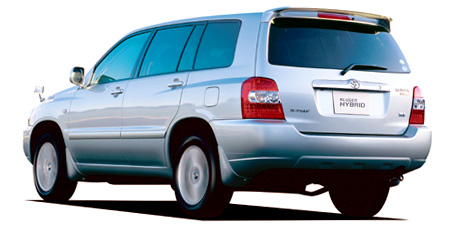

TOYOTA KLUGER HYBRID BASE GRADE

TOYOTA KLUGER HYBRID

MHU28W · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: MHU28W
Dates releasing: 2005.3~
Base price, ¥: DAA-MHU28W
Body size: 4710x1825x1700
Interior (LxWxH): 2645x1500x1210
Wheelbase: 2715
Track f/r: 1575mm/1550mm
Full weight, kg: 1890
Body type: SUV
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDIM(EBD付ABS VSC TRC 車速感応型電動パワーステアリング統合制御) ECB(電子制御ブレー&#124

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3MZ-FE
Type: water cooling V-type 6 cylinder DOHC+
Bore x stroke, mm: 92.0x83.0
Engine size, cc: 3310
Compression ratio: 10.8
Fuel injection: EFI
Max power, hp/rpm: 211ps(155kW)/5600rpm
Max torque, Nm/rpm: 29.4kg m(288N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Strut type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/60R17
Rear wheel: 225/60R17
Min turn diameter, m: 5.7

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
