JDM Vehicle Catalog

Vehicle Specs

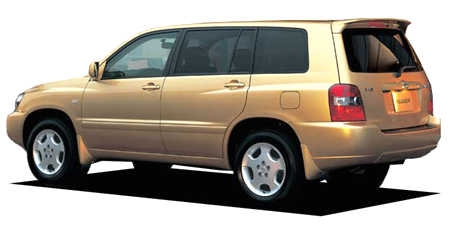

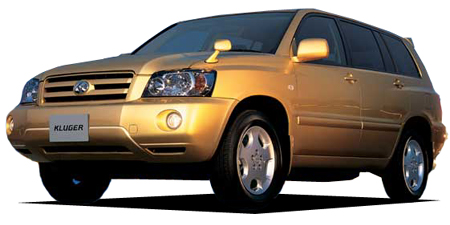

TOYOTA KLUGER L 3.0S

TOYOTA KLUGER L

MCU20W · 3.0S

Description

Modification: 3.0S
Chassis ID: MCU20W
Dates releasing: 2004.4~
Base price, ¥: CBA-MCU20W
Body size: 4690x1825x1685
Interior (LxWxH): 2645x1500x1220
Wheelbase: 2715
Track f/r: 1575mm/1555mm
Full weight, kg: 1670
Body type: SUV
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1MZ-FE
Type: water cooling V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 87.5x83.0
Engine size, cc: 2994
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 220ps(162kW)/5800rpm
Max torque, Nm/rpm: 31.0kg m(304N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 72 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Strut type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/60R17 99H
Rear wheel: 225/60R17 99H
Min turn diameter, m: 5.6

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.235	2.360	1.517	1.047	0.756	—	—	—	3.378

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
