TOYOTA LAND CRUISER 100 VX LIMITED

TOYOTA LAND CRUISER 100

HDJ101K · VX LIMITED

Description

Modification: VX LIMITED
Chassis ID: HDJ101K
Dates releasing: 2005.4~
Base price, ¥: KR-HDJ101K
Body size: 4890x1940x1860
Interior (LxWxH): ----x----x----
Wheelbase: 2850
Track f/r: 1620mm/1615mm
Full weight, kg: 2490
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ◯
Energy-absorbing body: 採用
EBD: ◯
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1HD-FTE
Type: water cooling inline 6 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 94.0x100
Engine size, cc: 4163
Compression ratio: 18.5
Fuel injection: 電子制御 type 分配型燃料噴射ポンプ
Max power, hp/rpm: 196ps(144kW)/3200rpm
Max torque, Nm/rpm: 44.0kg m(431N m)/1200~3200rpm
Supercharger: Turbo
Fuel tank, liters: 96 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Independent suspension
Rear suspension: トレーリングリンク Axle コイルばね (stabiliz
Front brake: Ventilated disk
Rear brake: Ventilated disk

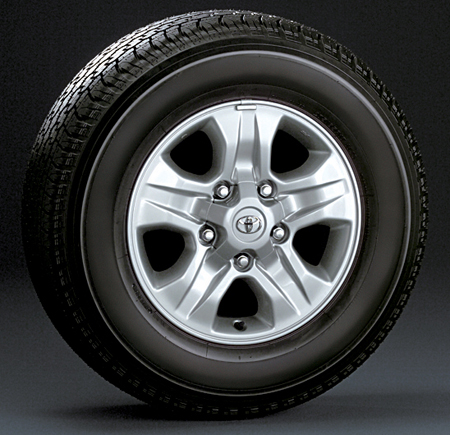

Front wheel: 275/65R17
Rear wheel: 275/65R17
Min turn diameter, m: 5.9

Gearbox

Number of stages: 5AT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.520	2.042	1.400	1.000	0.716	—	—	—	3.224

Available colors

blackwhitegreen / Dark green micaMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
