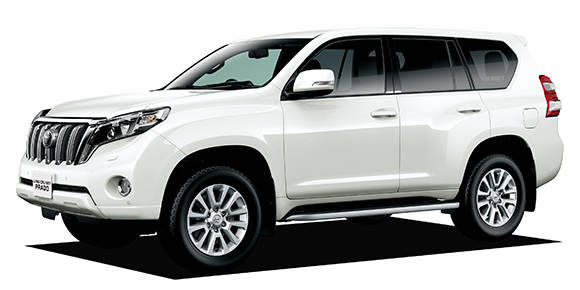

TOYOTA LAND CRUISER PRADO TZ-G

TOYOTA LAND CRUISER PRADO

GDJ151W · TZ-G

Description

Modification: TZ-G
Chassis ID: GDJ151W
Dates releasing: 2015.6~
Base price, ¥: LDA-GDJ151W
Body size: 4760x1885x1835
Interior (LxWxH): 2520x1565x1240
Wheelbase: 2790
Track f/r: 1585mm/1585mm
Full weight, kg: 2300
Body type: SUV
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1GD-FTV
Type: inline 4 cylinder DOHCIC-turbo (Diesel)
Bore x stroke, mm: 92.0x103.6
Engine size, cc: 2754
Compression ratio: 15.6
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 177ps(130kW)/3400rpm
Max torque, Nm/rpm: 45.9kg m(450N m)/1600~2400rpm
Supercharger: IC turbo
Fuel tank, liters: 87 l
Fuel: Diesel
Fuel consumption, l/100km: 8.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Independent suspension Coil spring (KDSS スタビライザー付)
Rear suspension: トレーリングリンク Axle エアスプリン&#
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 265/60R18
Rear wheel: 265/60R18
Min turn diameter, m: 5.8

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.600	2.090	1.488	1.000	0.687	0.580	—	—	3.732

Available colors

black / Other blackwhite / Super White IIgreen / Dark green micaMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRed / Red mica metallicBlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
