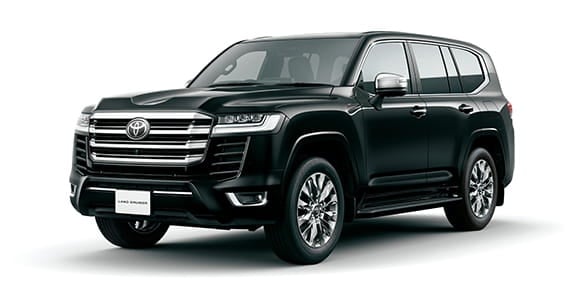

TOYOTA LAND CRUISER RALLY RAID

TOYOTA LAND CRUISER

FJA300W · RALLY RAID

Description

Modification: RALLY RAID
Chassis ID: FJA300W
Dates releasing: 2025.12~
Base price, ¥: 3DA-FJA300W
Body size: 4965x1990x1925
Interior (LxWxH): 1955x1640x1190
Wheelbase: 2850
Track f/r: 1665mm/1665mm
Full weight, kg: 2560
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: F33A-FTV
Type: V-type 6 cylinder ICツインturbo (Diesel)
Bore x stroke, mm: 86.0x96.0
Engine size, cc: 3345
Compression ratio: ----
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 307ps(226kW)/4000rpm
Max torque, Nm/rpm: 71.4kg m(700N m)/1600~2600rpm
Supercharger: IC Twin-turbo
Fuel tank, liters: 80 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Independent suspension Coil spring
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 285/60R18
Rear wheel: 285/60R18
Min turn diameter, m: 5.9

Gearbox

Number of stages: 10AT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.923	3.257	2.349	1.944	1.532	1.193	1.000	0.801	4.307

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
