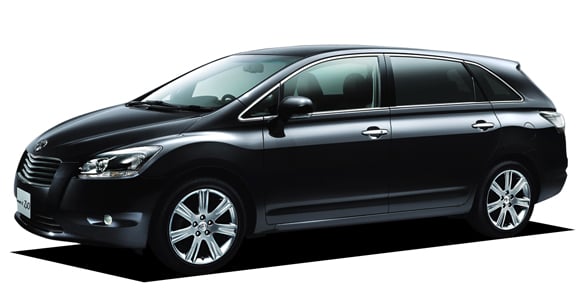

TOYOTA MARK X ZIO 240G BLACK PEARL LIMITED

TOYOTA MARK X ZIO

ANA10 · 240G BLACK PEARL LIMITED

Description

Modification: 240G BLACK PEARL LIMITED
Chassis ID: ANA10
Dates releasing: 2008.8~
Base price, ¥: DBA-ANA10
Body size: 4695x1785x1550
Interior (LxWxH): 2670x1505x1220
Wheelbase: 2780
Track f/r: 1535mm/1530mm
Full weight, kg: 1570
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2AZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 88.5x96.0
Engine size, cc: 2362
Compression ratio: 9.8
Fuel injection: EFI
Max power, hp/rpm: 163ps(120kW)/6000rpm
Max torque, Nm/rpm: 22.6kg m(222N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45R18 91W
Rear wheel: 225/45R18 91W
Min turn diameter, m: 5.7

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	1.668

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Light blue metallicMagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
