TOYOTA NOAH SI

TOYOTA NOAH

ZRR75W · SI

Description

Modification: SI
Chassis ID: ZRR75W
Dates releasing: 2010.4~
Base price, ¥: DBA-ZRR75W
Body size: 4635x1720x1875
Interior (LxWxH): 2970x1485x1340
Wheelbase: 2825
Track f/r: 1500mm/1475mm
Full weight, kg: 1680
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

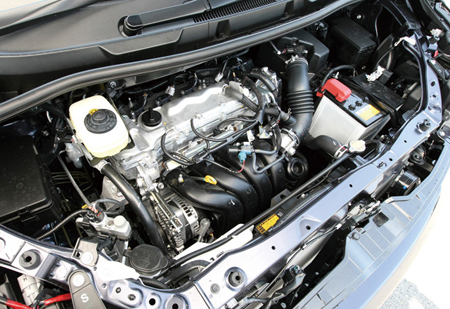

Engine

Model: 3ZR-FAE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 80.5x97.6
Engine size, cc: 1986
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 155ps(114kW)/6200rpm
Max torque, Nm/rpm: 19.6kg m(192N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16
Rear wheel: 205/60R16
Min turn diameter, m: 5.5

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	1.668

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
