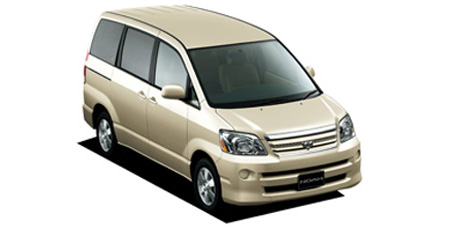

TOYOTA NOAH X

TOYOTA NOAH

AZR60G · X

Description

Modification: X
Chassis ID: AZR60G
Dates releasing: 2004.8~
Base price, ¥: CBA-AZR60G
Body size: 4580x1695x1850
Interior (LxWxH): 2680x1470x1340
Wheelbase: 2825
Track f/r: 1480mm/1470mm
Full weight, kg: 1580
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES

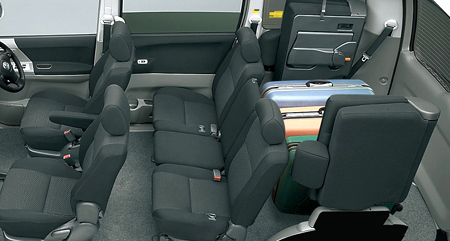

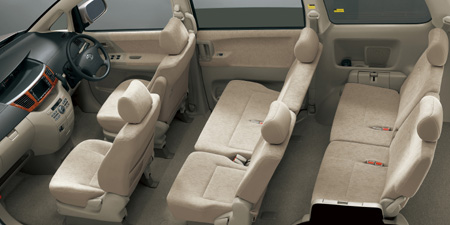

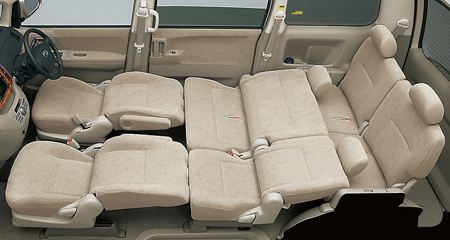

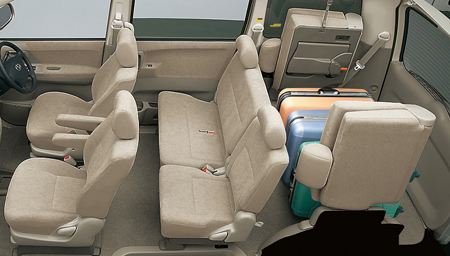

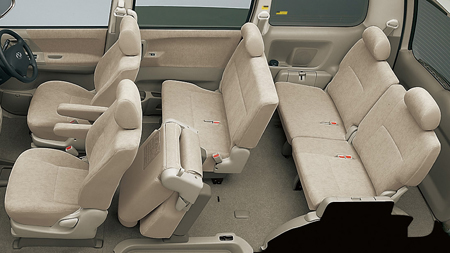

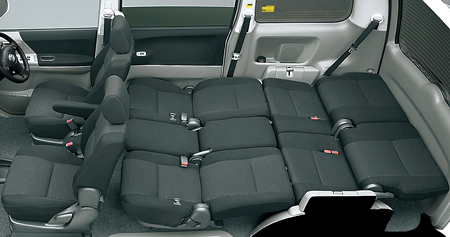

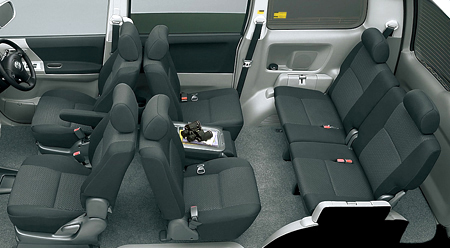

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1AZ-FSE(D-4)
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 10.5
Fuel injection: 筒内直接燃料噴射装置(D-4)
Max power, hp/rpm: 155ps(114kW)/6000rpm
Max torque, Nm/rpm: 19.6kg m(192N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R15
Rear wheel: 195/65R15
Min turn diameter, m: 5.5

Gearbox

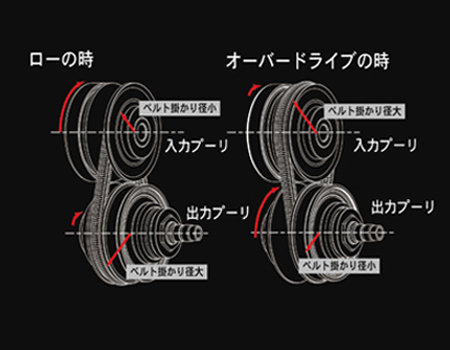

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	1.668

Available colors

blackwhite / Super White IIgreenMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Red micaBlueDark cyanPearl / Pearl WhiteGold / Beige Metallic
