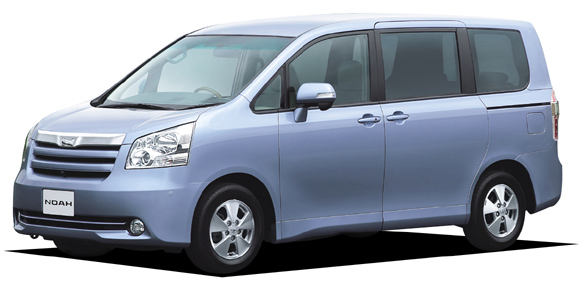

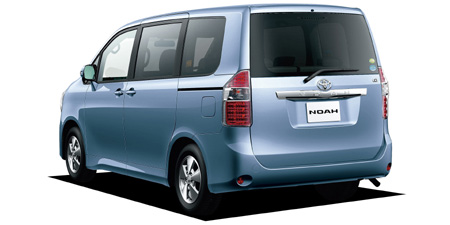

TOYOTA NOAH YY

TOYOTA NOAH

ZRR70G · YY

Description

Modification: YY
Chassis ID: ZRR70G
Dates releasing: 2007.6~
Base price, ¥: DBA-ZRR70G
Body size: 4595x1695x1850
Interior (LxWxH): 2210x1485x1350
Wheelbase: 2825
Track f/r: 1480mm/1470mm
Full weight, kg: 1530
Body type: MV 1Box

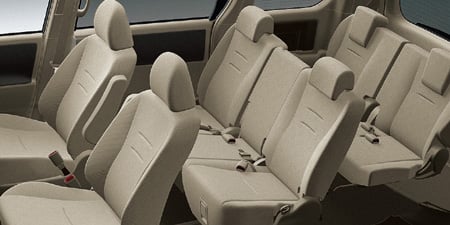

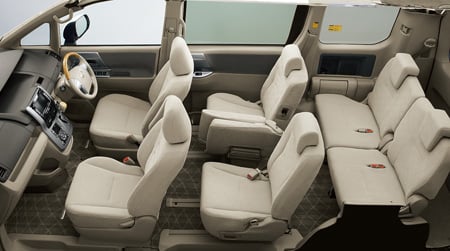

Doors / seats: 5 door / 5

Safe equipment

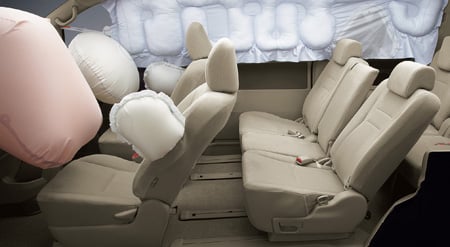

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓

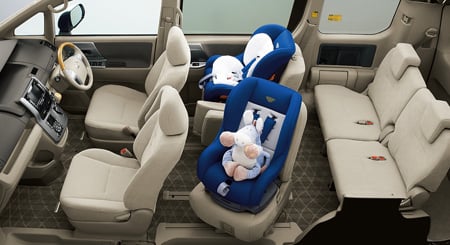

Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3ZR-FE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 80.5x97.6
Engine size, cc: 1986
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 143ps(105kW)/5600rpm
Max torque, Nm/rpm: 19.8kg m(194N m)/3900rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R15
Rear wheel: 195/65R15
Min turn diameter, m: 5.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ◯
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

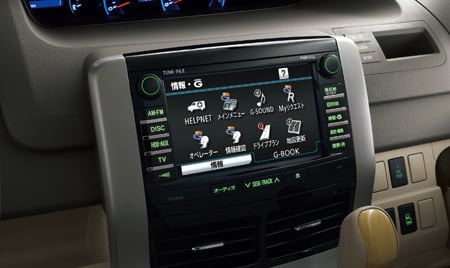

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	1.668

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
